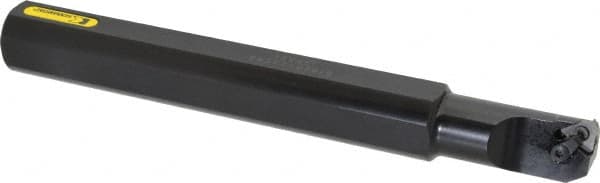

Kennametal - Internal Thread, Right Hand Cut, 31.75mm Shank Width x 1-1/4" Shank Height Indexable Threading Toolholder - 254mm OAL, LT 16NR Insert Compatibility, S16 Toolholder, Series LT Threading
Item #: 64926280
Brand: Kennametal
Model #: 1288961
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 254.00 |
| Insert Compatibility | LT 16NR |
| Series | LT Threading |
| Toolholder Style | S16 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6500 |
| Center to Cutting Edge (Decimal Inch) | 0.6500 |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Head Length (mm) | 63.50 |
| Head Length (Decimal Inch) | 2.5000 |
| Minimum Bore Diameter (Decimal Inch) | 1.2000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Toolholder Material | Steel |
