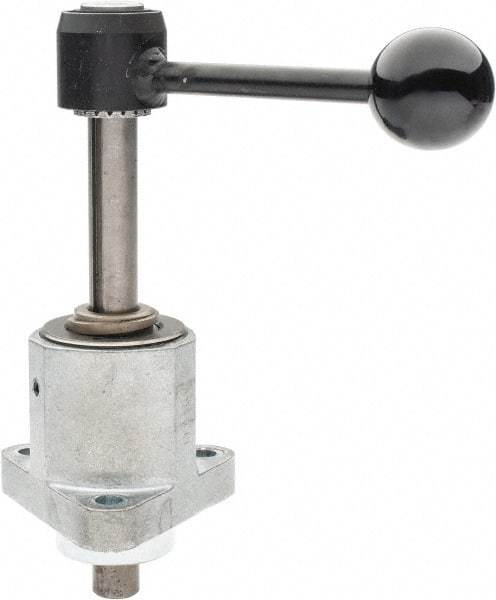

De-Sta-Co - 9,000 N Capacity, M8 Plunger, 16mm Plunger Diam, Flange Mt, One Hand, Hand Lever Actuation, Variable Stroke Straight Line Action Clamp - 60mm Max Rapid Stroke, 4mm Max Clamping Stroke, 9mm Mt Hole Diam, 73mm Overall Height, 196mm OAL
Item #: 64825631
Brand: De-Sta-Co
Model #: FL-161/60
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Style | Flange Mount |
| Actuation Type | Hand Lever |
| Operating Method | One-Hand |
| Load Capacity (N) | 9000.00 |
| Load Capacity (Lb.) | 2020.00 |
| Maximum Rapid Stroke (mm) | 60.00 |
| Maximum Clamping Stroke (mm) | 4.00 |
| Plunger Diameter (mm) | 16.00 |
| Plunger Thread Size | M8 |
| Overall Length (mm) | 196.00 |
| Overall Height (mm) | 73.00 |
| Mount Hole Diameter (mm) | 9.00 |
| Width Distance Between Mounting Holes (mm) | 68.00 |
