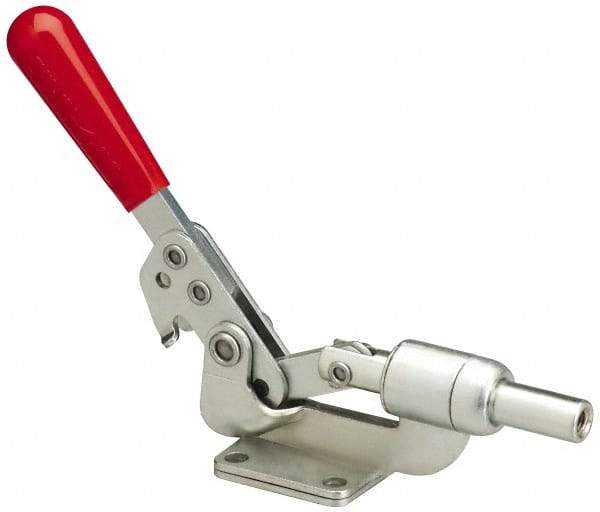

De-Sta-Co - 600 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 4 Mounting Holes, 0.38" Mounting Hole Diam, 0.62" Plunger Diam, Straight Handle
Item #: 64825581
Brand: De-Sta-Co
Model #: 620
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 2668.93 |
| Load Capacity (Lb.) | 600.00 |
| Plunger Travel (mm) | 28.19 |
| Plunger Travel (Decimal Inch) | 1.1100 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 3/8-16 |
| Plunger Centerline Height (mm) | 43.18 |
| Plunger Centerline Height (Decimal Inch) | 1.7000 |
| Plunger Diameter (Decimal Inch) | 0.6200 |
| Plunger Diameter (mm) | 15.75 |
| Base Style | Flanged |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 11.6300 |
| Overall Height (Decimal Inch) | 2.2500 |
| Base Length (Decimal Inch) | 2.2500 |
| Base Width (Decimal Inch) | 2.2500 |
| Handle Color | Red |
| Number of Mounting Holes | 4 |
| Length Distance Between Mount Holes (mm) | 41.30 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.6300 |
| Width Distance Between Mount Holes (mm) | 41.40 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6300 |
| Mounting Hole Diameter (mm) | 9.65 |
| Mounting Hole Diameter (Decimal Inch) | 0.3800 |
| Base Width (mm) | 57.15 |
| Base Length (mm) | 57.15 |
| Overall Length (mm) | 295.40 |
| Overall Height (mm) | 57.15 |
| Maximum Mechanical Advantage | 44:1 |
