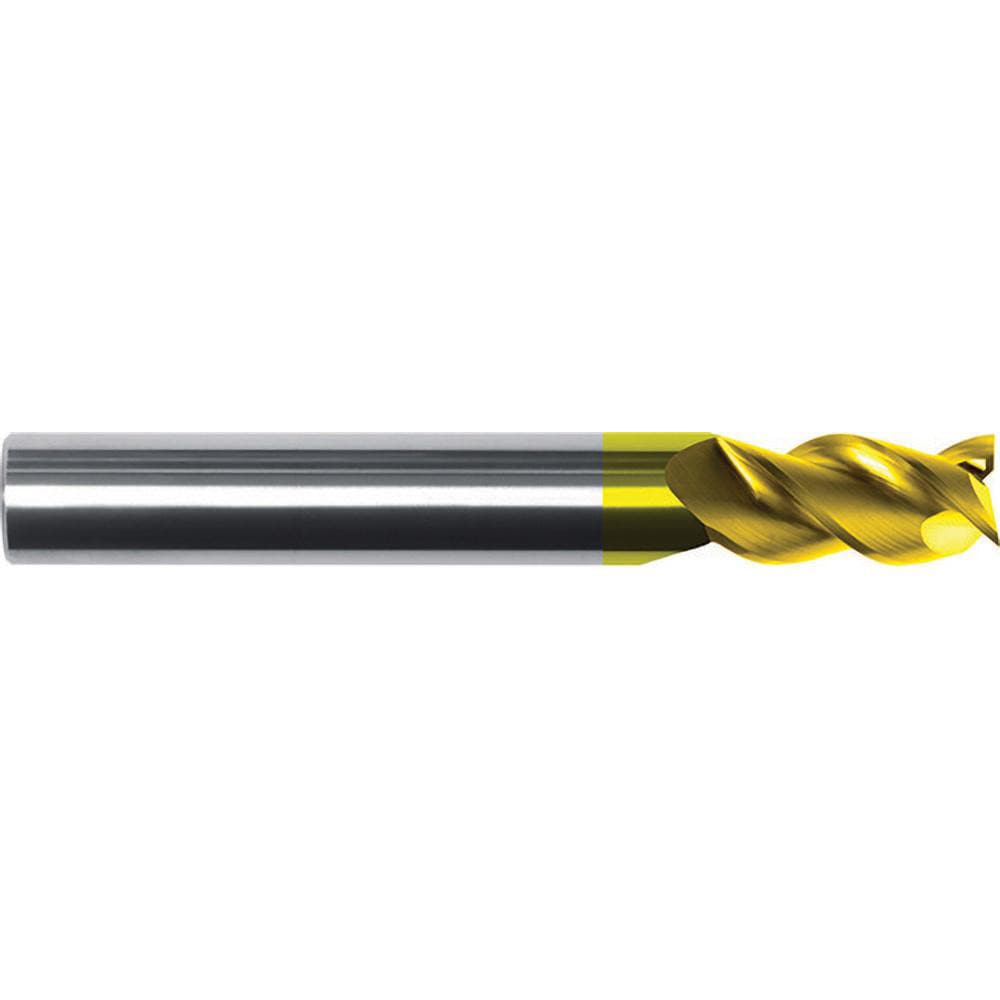

Square End Mill: 1/4" Dia, 3/4" LOC, 3 Flute, Solid Carbide
Item #: 05731641
Brand: Internal Tool
Model #: 126-1025
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | ZrN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 45 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | ZrN |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Micrograin |
| Length Type | Regular |
| Series | 126 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
