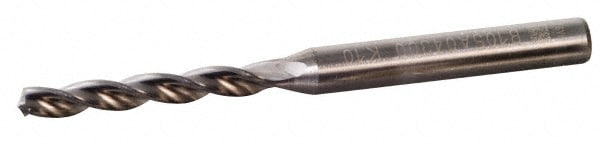

Jobber Drill: 16.50 mm Dia, 130 deg Point, Solid Carbide
Item #: 33009127
Brand: Kennametal
Model #: 1191467
Product Specifications
| Drill Bit Size (mm) | 16.50 |
| Drill Bit Size (Decimal Inch) | 0.6496 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Cast Iron |
| Specification Number | DIN 6537L |
| Coolant Through | No |
| Number of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 143.00 |
| Overall Length (Decimal Inch) | 5.6299 |
| Spiral Type | Regular |
| Flute Length (mm) | 93.00 |
| Flute Length (Decimal Inch) | 3.6614 |
| Shank Diameter (mm) | 18 |
| Maximum Drilling Depth (Decimal Inch) | 2.7953 |
| Maximum Drilling Depth (mm) | 71.00 |
| Shank Length (mm) | 48 |
| Shank Length (Decimal Inch) | 1.8898 |
| Drill Point Length (mm) | 4.10 |
| Drill Bit Diameter Tolerance | 0.007 to 0.025 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | Specialized |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 15.00+ |
| Material Grade | K10 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
