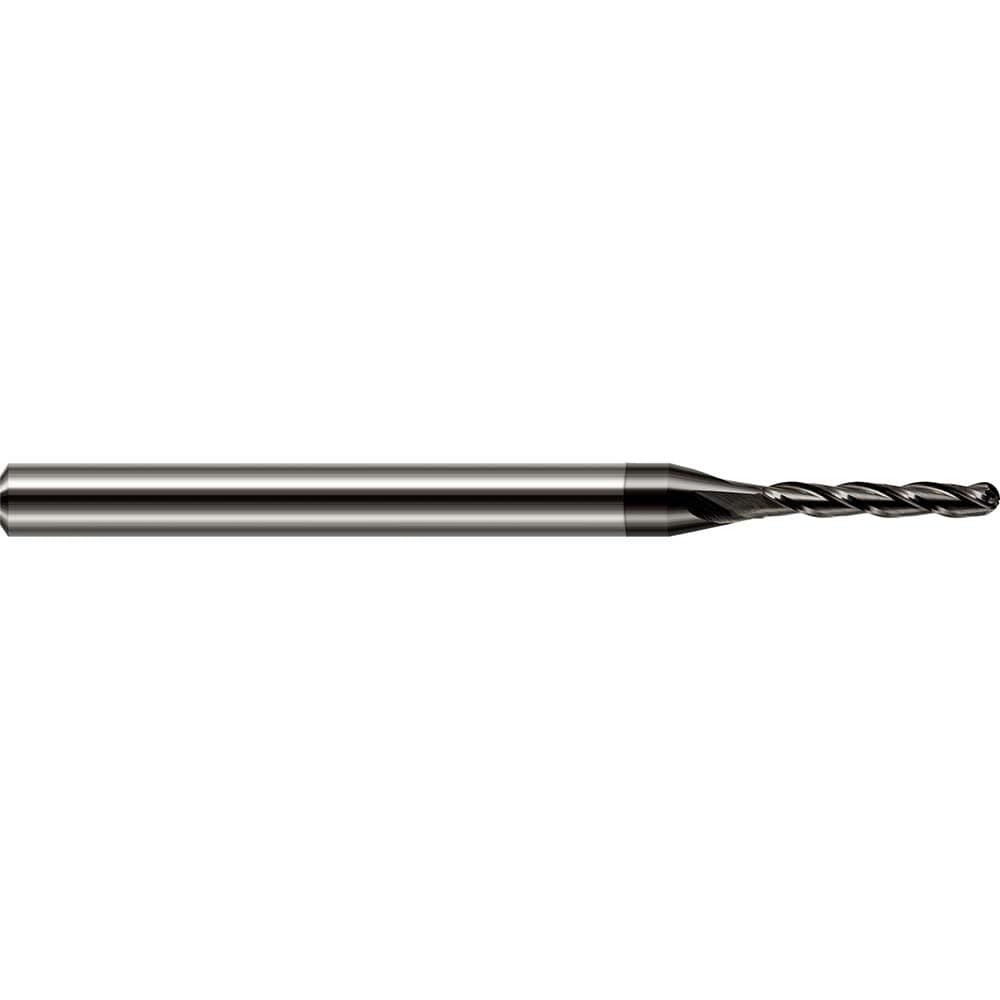

Ball End Mill: 5/32" Dia, 1" LOC, 4 Flute, Solid Carbide
Item #: 35177427
Brand: Harvey Tool
Model #: 12610-C4
Product Specifications
| Mill Diameter (Inch) | 5/32 |
| Mill Diameter (Decimal Inch) | 0.1562 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1 |
| Coating/Finish | Amorphous Diamond |
| Overall Length (Inch) | 3 |
| Shank Diameter (Inch) | 3/16 |
| Extended Reach | No |
| Variable Helix | Yes |
| Variable Index | No |
| Helix Angle | 20 |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.5000 |
| Length Type | Long |
| Helix Style | Variable |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Nose Radius (Decimal Inch) | 0.0781 |
| Reach Length (Inch) | 1 |
| Reach Length (Decimal Inch) | 1.0000 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Miniature End Mills - Ball - Long Flute, Miniature End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | No |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Manufacturers Catalog Number | 12610-C4 |
| System Of Measurement | Fractional Inch |
