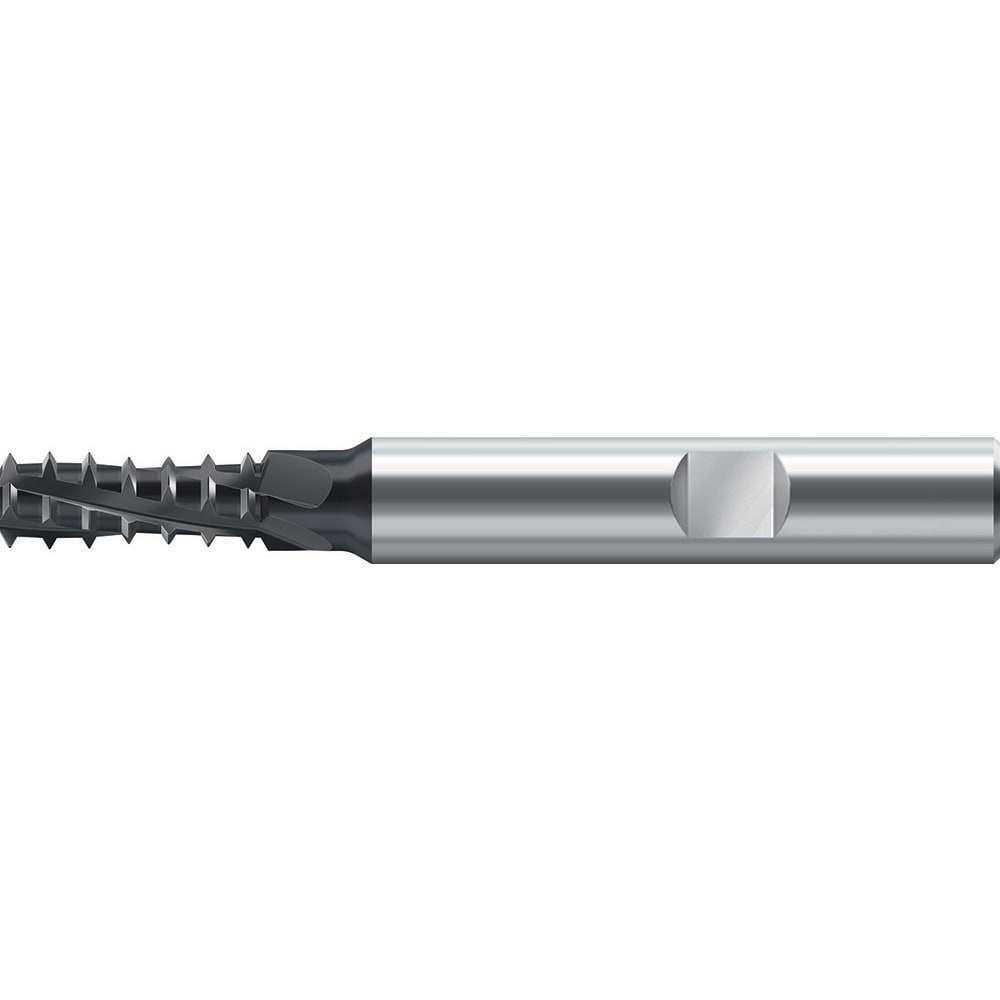

Helical Flute Thread Mill: 3/4-10, Internal, 5 Flute, 16.0000 mm Shank Dia, Solid Carbide
Item #: 53441739
Brand: Walter-Prototyp
Model #: 8117613
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 3/4-10 |
| Thread Type | Internal |
| Shank Diameter (mm) | 16.0000 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Cutting Diameter (mm) | 15.50 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.6102 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
| Length of Cut (mm) | 38.1000 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.000 |
| Overall Length (mm) | 100.0000 |
| Overall Length (Decimal Inch) | 3.9370 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Series | TC620-UNC-W5D |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 10 |
| UNSPSC Code | 23242117 |
