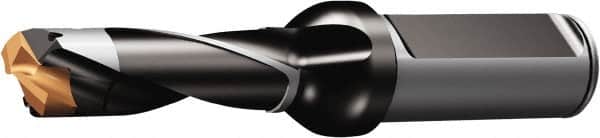

Sandvik Coromant - 19 to 19.99mm Diam, 3xD, 63.01mm Max Depth, 1" Shank Diam, 82.98mm Flute, 142mm OAL, Replaceable Tip Drill - 870-1990-19-PM Insert, 19 Seat Size, 870...LX-3 Toolholder, Series CoroDrill 870
Item #: 64666589
Brand: Sandvik Coromant
Model #: 6035745
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 19.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.4807 |
| Maximum Drill Depth (mm) | 63.01 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | 870-1990-19-PM |
| Insert Seat Size | 19 |
| Toolholder Style | 870...LX-3 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Tip Length (mm) | 3.02 |
| Tip Length (Decimal Inch) | 0.1189 |
| Flute Length (mm) | 82.98 |
| Flute Length (Decimal Inch) | 3.2669 |
| Body Length (mm) | 66.00 |
| Body Length (Decimal Inch) | 2.5984 |
| Overall Length (mm) | 142.00 |
| Overall Length (Decimal Inch) | 5.5906 |
| Toolholder Material | Steel |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
