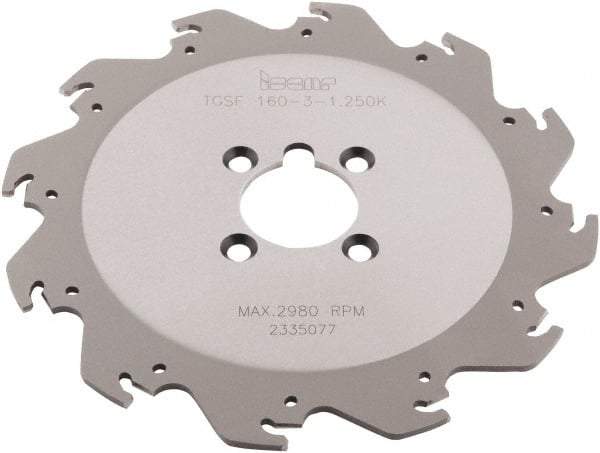

Iscar - Arbor Hole Connection, 0.118" Cutting Width, 2.05" Depth of Cut, 0.098" Cutter Diam, 1-1/4" Hole Diam, 8 Tooth Indexable Slotting Cutter - TGSF Toolholder, TAG N3 Insert
Item #: 64661747
Brand: Iscar
Model #: 2302609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (Decimal Inch) | 2.0500 |
| Cutter Diameter (Decimal Inch) | 6.2990 |
| Cutter Diameter (Inch) | 0.0980 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 8 |
| Toolholder Style | TGSF |
| Series | TangSlit(TGSF) |
| Insert Style | TAG N3 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Clamp |
| Maximum RPM | 2980 |
| Radius | No |
| Complete Insert Compatibility1 | TAG N1.4C; TAG N1.4J; TAG N1.6C; TAG N1.6J; TAG N2.4C; TAG N2A; TAG N2C; TAG N2J; TAG N2JS; TAG N2JT; TAG N2LF; TAG N2UT; TAG N3A; TAG N3CB; TAG N3LF; TAG N3UT; TAG N4A; TAG N4UT; TAG N5UT; TAG N6UT |
