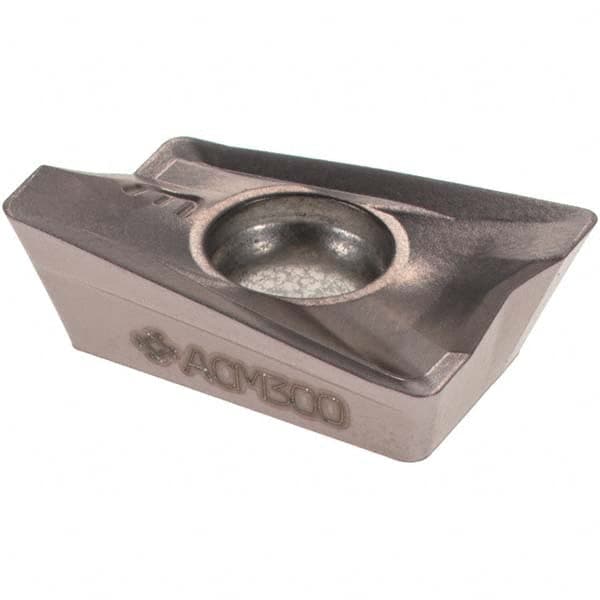

AXMT170508 Milling Insert
Item #: 64648942
Brand: Sumitomo
Model #: 144W423
Product Specifications
| Insert Style | AXMT |
| Insert Size Code | 1235 |
| Insert Size | 170508 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | ACM300 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Insert Hand | Right Hand |
| Relief Angle | 11.00 |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5510 |
| Maximum Depth of Cut (mm) | 14.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6890 |
| Insert Shape | Parallelogram |
| Primary Workpiece Material | Superalloy; Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Cutter Series Compatibility | WEX3000 |
| Chip Breaker | E |
| Coating/Finish | Coated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4020 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1380 |
