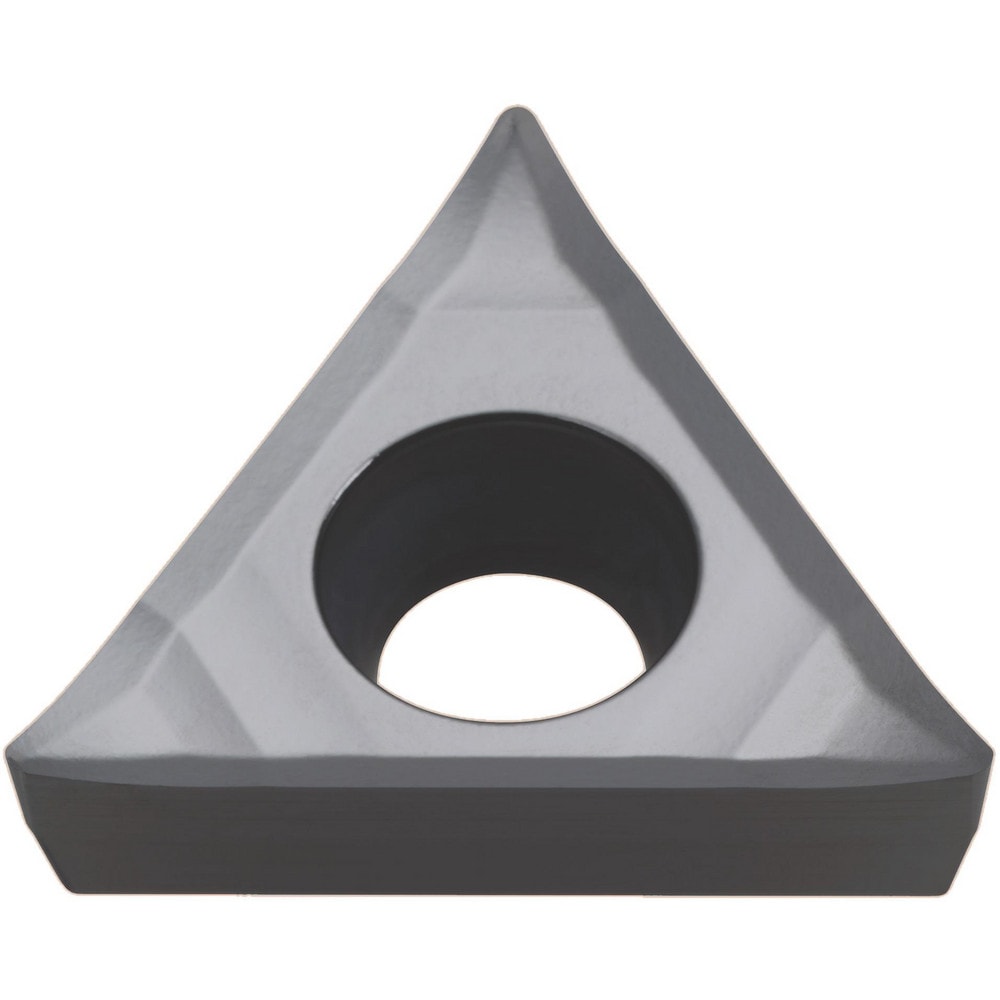

Turning Insert: TCGT32.50.5AZ HTI10, Carbide
Item #: 03952892
Brand: Mitsubishi
Model #: 461624
Product Specifications
| ANSI Insert Code | TCGT32.50.5 |
| ISO Insert Code | TCGT16T302 |
| Relief Angle | 7 |
| Insert Style | TCGT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60 |
| Manufacturer Grade | HTI10 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1562 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | K; N |
| Chip Breaker | AZ |
| ANSI Size Code | 32.50.5 |
| ISO Size Code | 16T302 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
