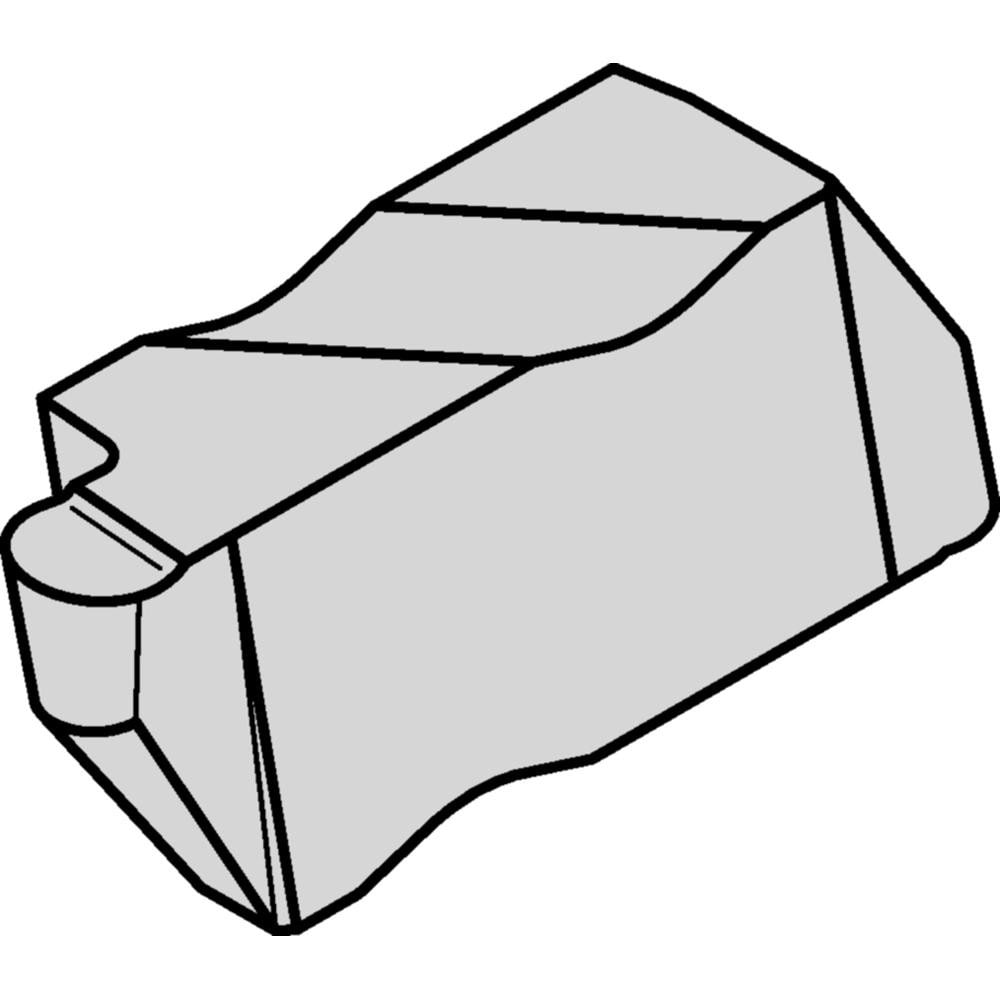

Brand: Widia / Part #: 3607499
Item #: 94478302
Brand: Widia
Model #: 3607499
Product Specifications
| Insert Style | NRD |
| Insert Size Code | 4 |
| Insert Size | 4 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6025 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Cutting Width (mm) | 3.180 |
| Cutting Width (Inch) | 1/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Inch) | 1/4 |
| Maximum Depth of Cut (mm) | 6.35 |
| Insert Holding Method | Clamp |
| Cutting Height (Inch) | 1/4 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0626 |
| Corner Radius (Inch) | 1/16 |
| Lead Angle | 11.000 |
| Rake | Neutral |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Series | NRD |
| Coating Process | PVD |
| Rake Angle | 0.000 |
| Overall Length (Decimal Inch) | 1.1180 |
| Overall Length (mm) | 28.3900 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; N |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Ansi Code | NRD4062R |
| Iso Code | NRD4062R |
| Relief Angle | 11 |
| Maximum Corner Radius (Decimal Inch) | 0.0626 |
| Manufacturers Catalog Number | NRD4062R |
| Insert Thickness (Decimal Inch) | 0.4530 |
| Minimum Groove Width (mm) | 3.18 |
| Thickness (Inch) | 29/64 |
| Type | Top Notch Grooving Insert |
| Maximum Groove Width (mm) | 3.18 |
| Minimum Insert Width (mm) | 6.50 |
| Chip Breaker | None |
| Insert Seat Size | 4 |
| Style | Top Notch Grooving Insert |
| Insert Height (Decimal Inch) | 0.4530 |
| Full Radius | Yes |
| Gage Diameter (Decimal Inch) | 0.3750 |
| Coating Classification | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Gage Diameter (Inch) | 3/8 |
| Overall Width | 6.5000 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.2560 |
| Coating/Finish | TiAlN |
| Number Of Cutting Edges | 2 |
| Single Or Double End | Single |
| Groove Width (mm) | 3.18 |
| For Use With | Grooving; Turning |
| Insert Thickness | 11.51 |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
