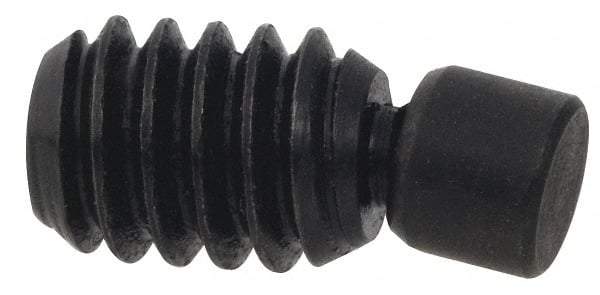

Gibraltar - 5/8-11, 3" OAL, Alloy Steel, Swivel Pad - Delrin Pad, Black Oxide Finish, 0.506" Pad Diam, 2-5/8" Thread Length, 7.5° Swivel Angle, 5/16" Hex Key
Item #: 64498470
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
Delrin is a thermoplastic resin that combines the properties of metal and plastic. It offers strength, hardness, dimensional stability, fuel and abrasion resistance as well as has low friction.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | 5/8-11 |
| Material | Alloy Steel |
| Pad Material | Delrin |
| Pad Diameter (Decimal Inch) | 0.5060 |
| Overall Length (Inch) | 3 |
| Thread Length (Inch) | 2-5/8 |
| Finish/Coating | Black Oxide |
| Thread Standard | UNC |
| Fastener Standard | ISO 9001 |
| Swivel Angle | 7.50 |
| Hex Key Size (Inch) | 5/16 |
