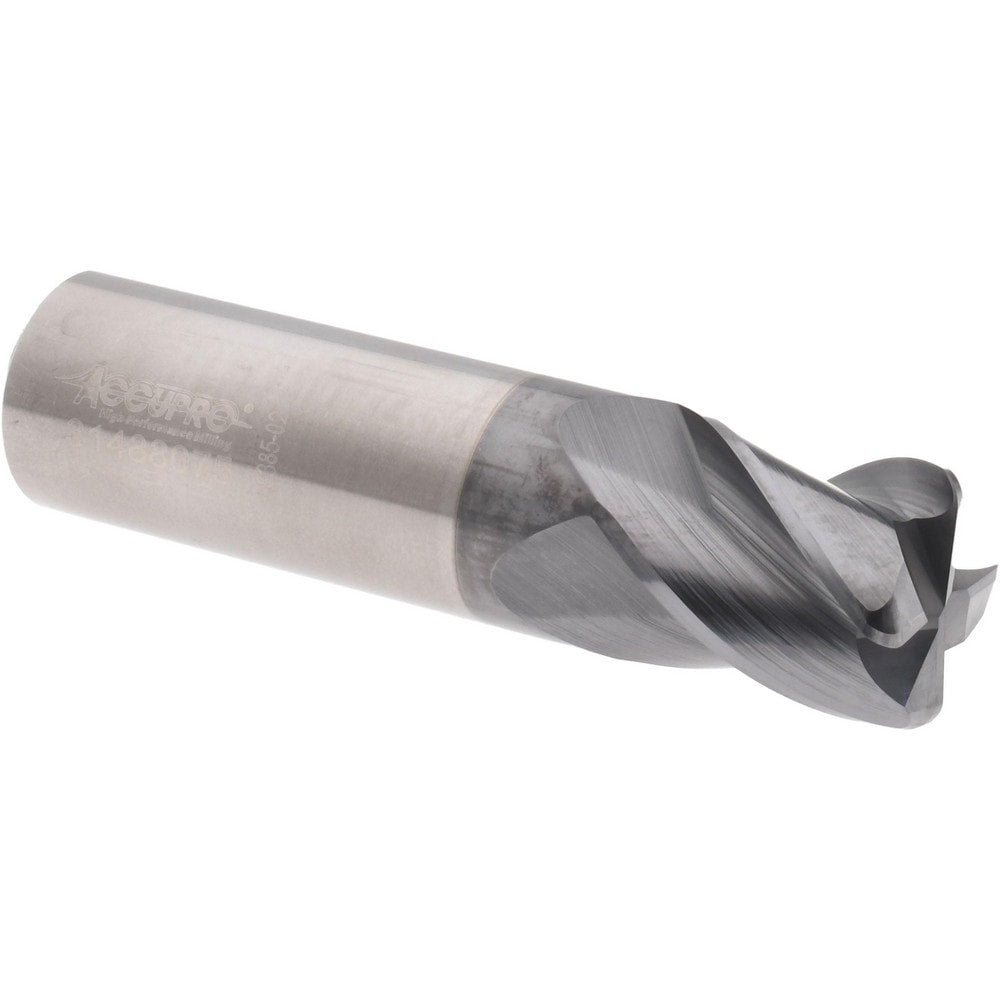

Corner Radius End Mill: 3/4" Dia, 7/8" LOC, 38 deg Helix, Corner Radius End, Centercutting Series HS
Item #: 31488075
Brand: Accupro
Model #: 95169960
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 22.22 |
| Length of Cut (Inch) | 7/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrTiN |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0900 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 76.2 |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (mm) | 19.05 |
| Corner Radius Tolerance | +0.00200 to -0.00200 in |
| Mill Diameter Tolerance | +0.000000/-0.001000 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | HS |
