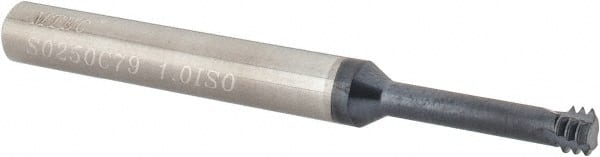

Iscar - M6x1 Internal 1mm Pitch 1/4" Shank 3-Flute RH Solid Carbide Helical Flute Thread Mill
Item #: 64378300
Brand: Iscar
Model #: 5605006
Product Specifications
| Pitch (mm) | 1.00 |
| Material | Solid Carbide |
| Thread Size (mm) | M6x1 |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1830 |
| Length of Cut (Decimal Inch) | 0.7900 |
| Finish/Coating | TiAlN |
| Through Coolant | NonThrough Coolant |
| Minimum Nominal Diameter | 6mm |
| Minimum Nominal Diameter (mm) | 6.00 |
| Minimum Nominal Diameter (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Standard | ISO |
| Flute Direction | Right Hand |
| Material Grade | Fine Grain |
