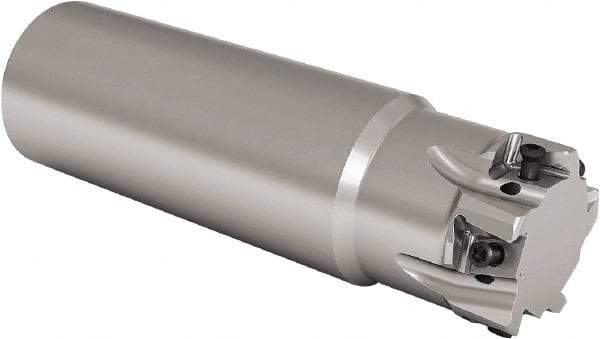

Seco - 5/8" Cut Diam, 8mm Max Depth of Cut, 5/8" Shank Diam, 5.52" OAL, Indexable Square Shoulder End Mill - LOEX Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Square T4-08
Item #: 64358641
Brand: Seco
Model #: 15581
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 5.5200 |
| Lead Angle | 90 |
| Series | Square T4-08 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.94 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6250 |
| Head Length (Decimal Inch) | 1.1220 |
| Weldon Flat | No |
| Insert Compatibility | LOEX |
| Maximum RPM | 20600 |
| Toolholder Material | Steel |
