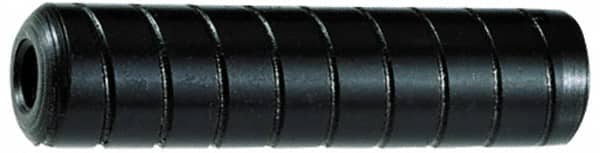

Holo-Krome - 3/4" Diam x 2-1/2" Pin Length 4000 Alloy Steel Pull Out Dowel Pin - Black Luster Finish, C 47-58 & C 60 (Surface) Hardness, 1 Beveled & 1 Threaded End
Item #: 64137417
Brand: Holo-Krome
Model #: 04096
Exact Tooling IR#: 04
Features and Benefits
Spiral vent pull out styles feature grooves to release trapped air. They include an internally threaded hole for easy removal.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Type | Spiral Vent Pull Out |
| Material | Alloy Steel |
| Pin Diameter (Inch) | 3/4 |
| Pin Length (Decimal Inch) | 2.5000 |
| Pin Length (Inch) | 2-1/2 |
| Hardness | C 47-58; C 60 (Surface) |
| Fastener Standard | MIL-S-7742; ASME/ANSI B18.8.2 |
| Material Grade | 4000 |
| Finish/Coating | Black Luster |
| System of Measurement | Inch |
| Thread Size | 5/16-18 |
| End Type | (1) Beveled; (1) Threaded |
