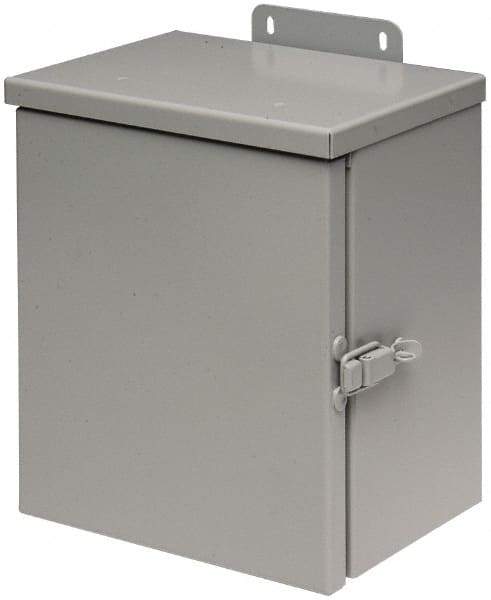

Cooper B-Line - Steel Junction Box Enclosure Hinge Flat Cover - NEMA 3R, 16" Wide x 20" High x 6" Deep, Rainproof
Item #: 64052988
Brand: Cooper B-Line
Model #: 20166RHC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Junction Box Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 3R |
| Overall Width (Inch) | 16 |
| Overall Width (Decimal Inch) | 16 |
| Overall Height (Inch) | 20 |
| Overall Height (Decimal Inch) | 20 |
| Overall Depth (Inch) | 6 |
| Overall Depth (Decimal Inch) | 6 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 16 |
| Resistance Features | Rainproof |
| Includes | 0.375-16 Collar Studs; Captive Screws; Continuous Hinge; External Mounting Feet; Padlock Hasp |
| Standards Met | ANSI 61; CSA C22.2 No. 40 Certified; UL Listed 50 |
| Overall Width (mm) | 406 |
| Overall Height (mm) | 508 |
| Overall Depth (mm) | 152 |
