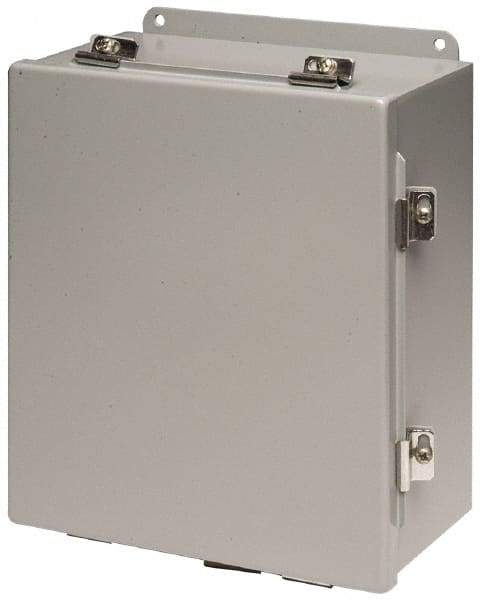

Cooper B-Line - Steel Standard Enclosure Hinge Flat Cover - NEMA 4, 12, 13, 10" Wide x 12" High x 5" Deep, Rainproof & Watertight
Item #: 64052798
Brand: Cooper B-Line
Model #: 12105-4CHC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Standard Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 4; 12; 13 |
| Overall Width (Inch) | 10 |
| Overall Width (Decimal Inch) | 10 |
| Overall Height (Inch) | 12 |
| Overall Height (Decimal Inch) | 12 |
| Overall Depth (Inch) | 5 |
| Overall Depth (Decimal Inch) | 5 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 16 |
| Resistance Features | Rainproof; Watertight |
| Includes | #10-32 Weldnuts; Continuous Hinge; External Mounting Feet; Ground Stud; Seamless Poured-in-place Gasket; Stainless Steel Hinge Pins; Stainless Steel Screw Clamps |
| Standards Met | ANSI 61; CSA C22.2 No. 94 Certified; UL Listed 508 |
| Overall Width (mm) | 254 |
| Overall Height (mm) | 305 |
| Overall Depth (mm) | 127 |
