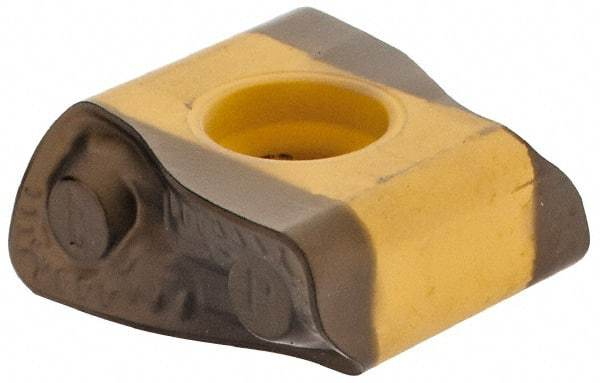

Iscar - LNMX150616 HT Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Rectangle, 13.4mm Thick, 1/16" Corner Radius
Item #: 63920201
Brand: Iscar
Model #: 5508118
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 150616 |
| Material | Carbide |
| Length (mm) | 15.00 |
| Length (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.5276 |
| Thickness (mm) | 13.40 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | HT |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | LNMX150616R |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 90 |
| Cutting Direction | Right Hand |
| Series | Heliturn |
| Maximum Depth of Cut (mm) | 8.00 |
| Insert Holding Method | Screw |
| Shape | Rectangle |
