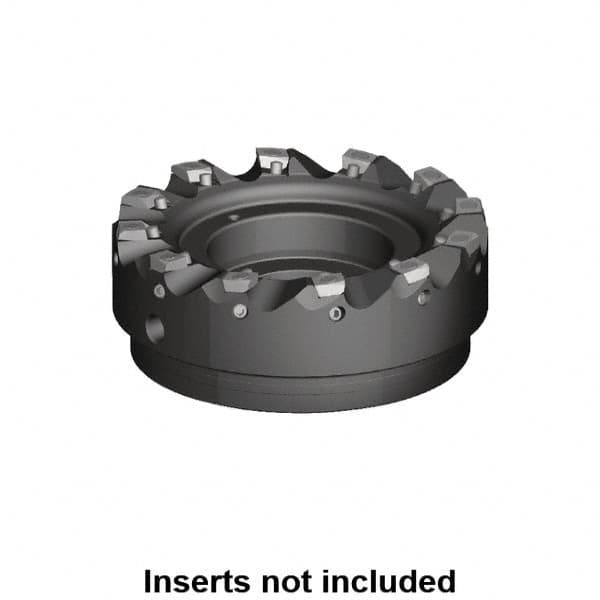

Kennametal - 8 Inserts, 4" Cut Diam, 1-1/4" Arbor Diam, 1.02mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, MDHX 1004.. Insert Compatibility, Series Fix-Perfect
Item #: 63811558
Brand: Kennametal
Model #: 1925488
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 44.45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | MDHX 1004.. |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 1.02 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Clamp |
| Cutter Style | CUF |
| Number of Flutes | 8 |
| Hub Diameter (mm) | 84.00 |
| Hub Diameter (Decimal Inch) | 3.3070 |
| Maximum Body Diameter (Decimal Inch) | 4.0787 |
| Maximum RPM | 12550 |
| Pitch | Medium |
| Complete Insert Compatibility | MDHX 1004ZDFRGD4W |
