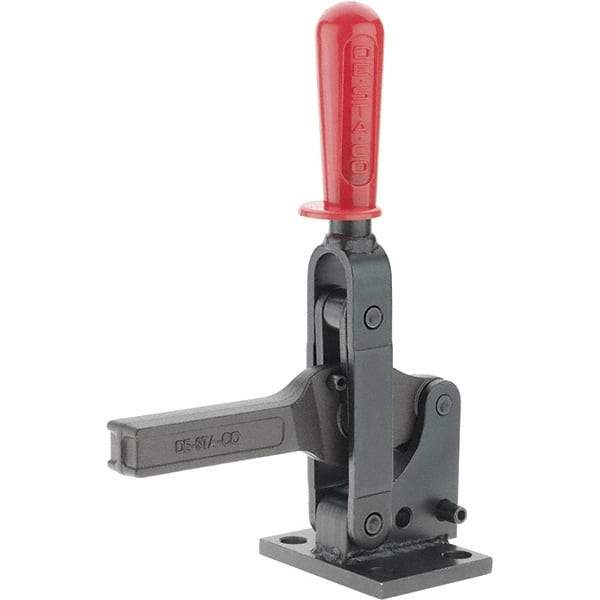

De-Sta-Co - 2,749 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 74° Handle Movement, 147° Bar Opening, Solid Bar, Flanged Base, Oxide Finish, Forged Alloy Steel
Item #: 63545370
Brand: De-Sta-Co
Model #: 5915
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
Solid Bars are designed to retain a spindle that is fixed to a specific position on the bar. The spindle retainers are commonly welded to the bar of the clamp at a customer specified position. Generally, the solid bar models have greater holding capacity than the equivalent U-bar model.
Forged alloy steel is a matrix composed of two or more alloy elements. It is heat and corrosion resistant.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (N) | 12230.00 |
| Holding Capacity (Lb.) | 2749.38 |
| Length Distance Between Mount Holes (mm) | 50.80 |
| Length Distance Between Mount Holes (Decimal Inch) | 2.0 |
| Width Distance Between Mount Holes (mm) | 69.85 |
| Width Distance Between Mount Holes (Decimal Inch) | 2.7500 |
| Height Under Bar (mm) | 60.20 |
| Height Under Bar (Decimal Inch) | 2.3700 |
| Overall Length (mm) | 190.50 |
| Overall Length (Decimal Inch) | 7.5000 |
| Overall Height (mm) | 479.81 |
| Overall Height (Decimal Inch) | 18.8900 |
| Base Length (mm) | 50.80 |
| Base Length (Decimal Inch) | 2.0000 |
| Base Width (mm) | 98.55 |
| Base Width (Decimal Inch) | 3.8800 |
| Handle Style | Straight |
| Material | Forged Alloy Steel |
| Handle Color | Red |
| Finish/Coating | Oxide |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (mm) | 13.97 |
| Mounting Hole Diameter (Decimal Inch) | 0.5500 |
| Front of Base To Tip Of Toggle Bar (mm) | 127.00 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 5.0000 |
| Bar Opening (Degrees) | 147.00 |
| Handle Movement (Degrees) | 74.00 |
| Bar Width (Decimal Inch) | 1.0000 |
| Bar Width (mm) | 25.40 |
