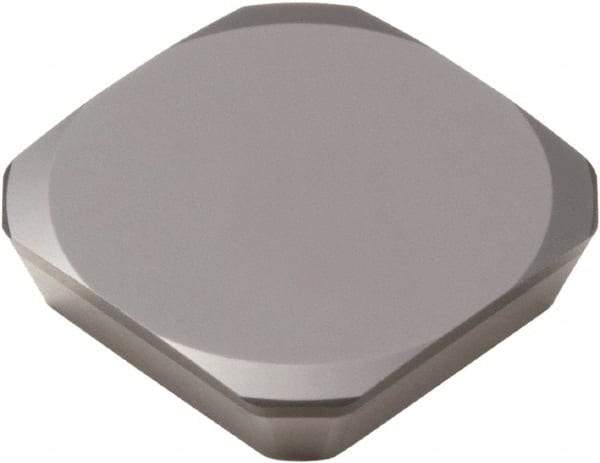

Seco - SEEX42 MD13 Grade CBN200 CBN Milling Insert - Uncoated, 1/8" Thick, 1/2" Inscribed Circle
Item #: 63503122
Brand: Seco
Model #: 34532
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | SEEX |
| Insert Size | 42 |
| Material | CBN |
| Manufacturer's Grade | CBN200 |
| Coating | Uncoated |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | MD13 |
| Manufacturers Catalog Number | SEEX 42AETN-MD13-LF |
