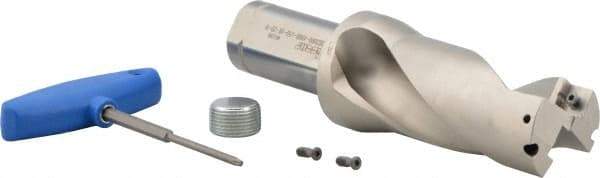

Iscar - 4" Max Drill Depth, 2xD, 2" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 63241509
Brand: Iscar
Model #: 3201814
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 2 |
| Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Depth (Decimal Inch) | 4.0000 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.1260 |
| Body Length (Decimal Inch) | 5.5000 |
| Shank Length (Decimal Inch) | 3.0000 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | 3/4 |
