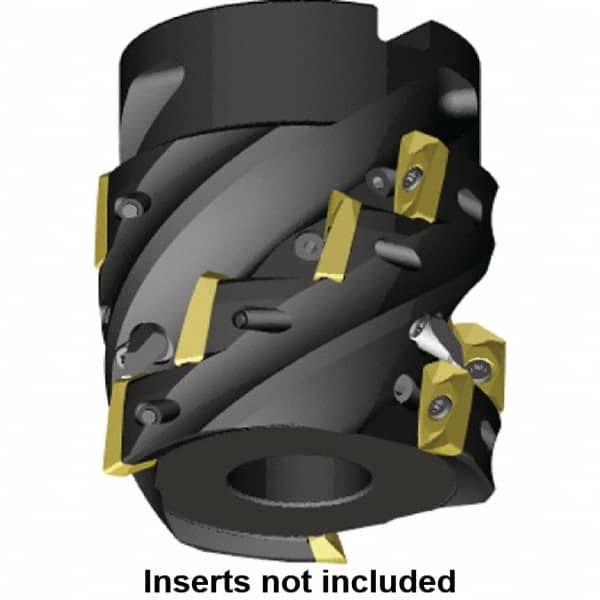

Kennametal - 12 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 2.08" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 3" High, EC14.., EP14.. Insert Compatibility, Through Coolant, Series Mill 1-14
Item #: 63220743
Brand: Kennametal
Model #: 3732939
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 3 |
| Overall Height (Decimal Inch) | 3.0000 |
| Insert Compatibility | EC14.., EP14.. |
| Series | Mill 1-14 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 2.0800 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Hub Diameter (Decimal Inch) | 2.1900 |
| Maximum RPM | 22000 |
