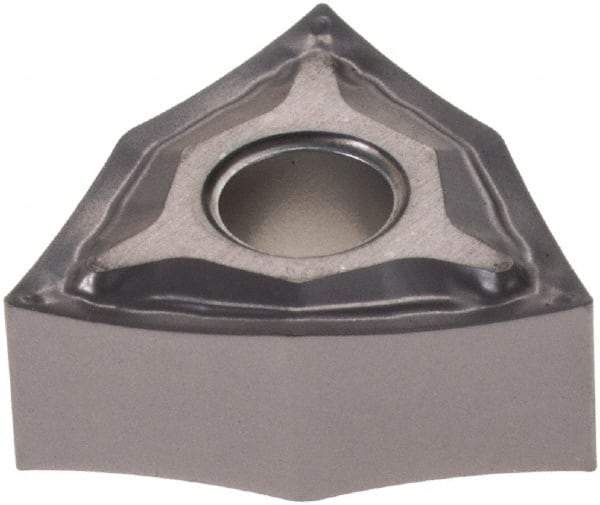

Iscar - WNMG330 NF Grade IC907 Carbide Turning Insert - TiN/TiAlN Finish, 80° Trigon, 3/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 63217806
Brand: Iscar
Model #: 5506230
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 330 |
| Material | Carbide |
| Length (mm) | 6.53 |
| Length (Decimal Inch) | 0.2570 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC907 |
| Coating | TiN/TiAlN |
| Material Grade | Submicron |
| Chip Breaker | NF |
| ISO Number | WNMG 330-NF |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | WNMG 330-NF |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Trigon |
