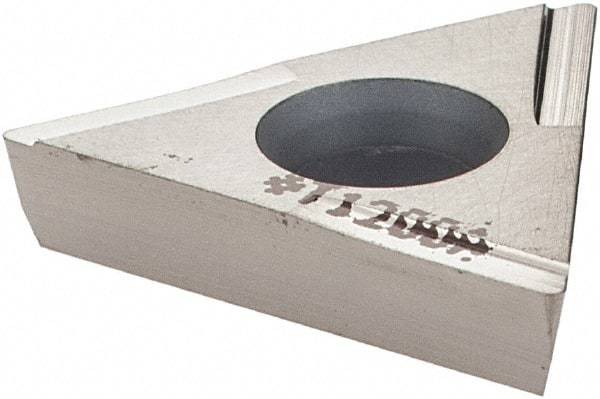

Sumitomo - TPGG321 SD Grade T1200A Cermet Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 63163117
Brand: Sumitomo
Model #: 10CAW2C
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGG |
| Insert Size | 321 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | T1200A |
| Coating | Uncoated |
| Material Grade | C2/C3/C4/C6/C7/C8 |
| Chip Breaker | SD |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
