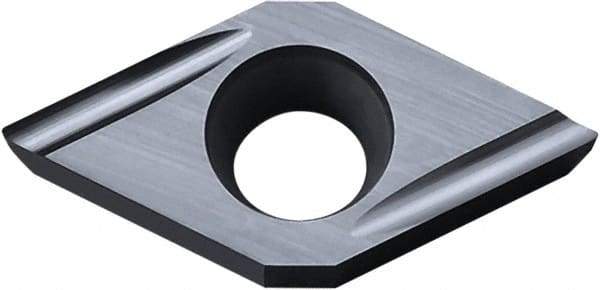

Kyocera - DCET21501 F Grade PR930 Carbide Turning Insert - TiCN Finish, 55° Diamond, 1/4" Inscr Circle, 0.093 Thick, 0.0012" Corner Radius
Item #: 63121784
Brand: Kyocera
Model #: 8817546
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCET |
| Insert Size | 21501 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.0930 |
| Corner Radius (Decimal Inch) | 0.0012 |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Chip Breaker | F |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | DCET0702003FR-USF |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Shape | Diamond |
