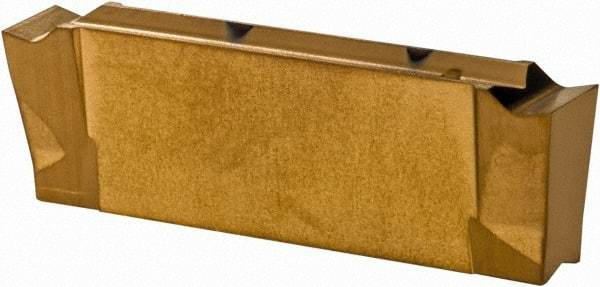

Iscar - DGN3000 IC508 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.002" Cnr Rad, TiCN/TiN Coated, Double End
Item #: 63111793
Brand: Iscar
Model #: 6003414
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 3000 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | C2/C3/C5/C6/C7 |
| Manufacturer's Grade | IC508 |
| Coating | TiCN/TiN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
