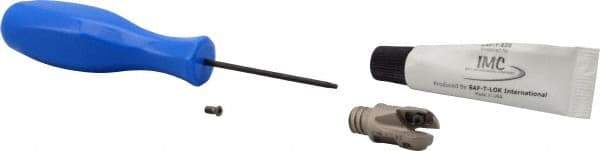

Iscar - 1/2" Cut Diam, 0.44" Max Depth of Cut, 1.1" OAL, Indexable Ball Nose End Mill - 0.78" Head Length, T08 Modular Connection, BCM-MM Toolholder, BCR... Insert
Item #: 63105480
Brand: Iscar
Model #: 3104291
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4400 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | T08 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR... |
| Toolholder Style | BCM-MM |
| Series | DropMill; Multimaster |
| Overall Length (Decimal Inch) | 1.1000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 0.7800 |
