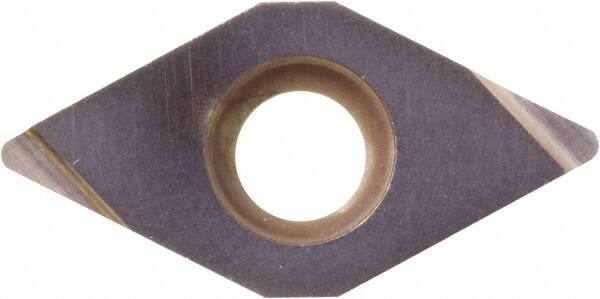

Kyocera - DCET325013 M Grade PR1225 Carbide Turning Insert - Megacoat Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.002" Corner Radius
Item #: 63103006
Brand: Kyocera
Model #: 8831850
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCET |
| Insert Size | 325013 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Chip Breaker | M |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | DCET11T3005MR-FSF |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | PR12 |
| Insert Holding Method | Screw |
| Shape | Diamond |
