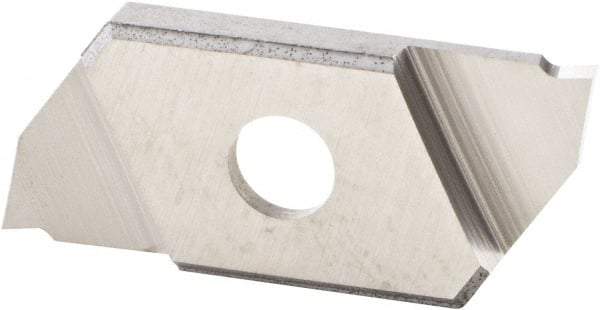

Kennametal - KPK1012 K1025P Grade, 0.0394" Cutting Width, Carbide Cutoff Insert - 6° Right Hand Lead Angle, Double End
Item #: 63062038
Brand: Kennametal
Model #: 3125666
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | KPK |
| Insert Size | 1012 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | K1025P |
| Coating | Uncoated |
| Series | Kenna Precision |
| Relief Angle | 0 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Full Radius | No |
| Overall Length (mm) | 15.00 |
| Overall Length (Decimal Inch) | 0.5906 |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Overall Width (mm) | 2.10 |
| Overall Width (Decimal Inch) | 0.0827 |
