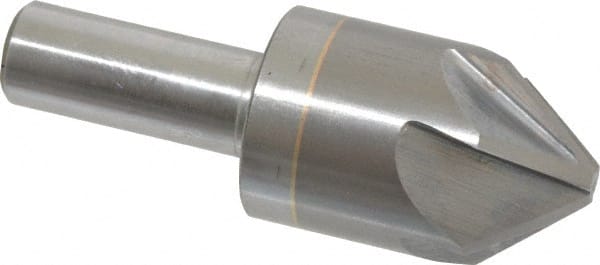

M.A. Ford - 1" Head Diam, 1/2" Shank Diam, 6 Flute 82° Solid Carbide Countersink
Item #: 72071640
Brand: M.A. Ford
Model #: 78100002
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (Inch) | 1 |
| Number of Flutes | 6 |
| Included Angle | 82 |
| Countersink Material | Solid Carbide |
| Countersink Finish/Coating | Bright |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 2-3/4 |
| Tip/Nose Diameter (Decimal Inch) | 0.2500 |
| Countersink Application | Chamfering; Countersinking; Deburring |
| End Type | Single |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Centerline Angle | 41 |
| PSC Code | 5133 |
| Material Application | Alloy Steel; Aluminum; Brass; Cast Iron; High Nickel Steel; High Tensile Steel; Magnesium; Magnesium Alloy; Mild Steel; Monel; Plastics; Stainless Steel |
