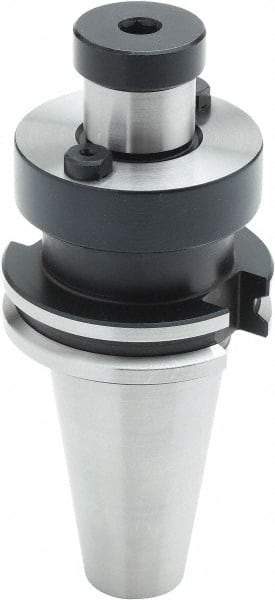

Parlec - CAT40 Taper Shank 1" Pilot Diam Shell Mill Holder - 2" Flange to Nose End Projection, 2-1/4" Nose Diam, 1/2-20 Lock Screw, Through-Spindle & DIN Flange Coolant
Item #: 62964929
Brand: Parlec
Model #: C40BC-10SM2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Pilot Diameter (Inch) | 1 |
| Pilot Diameter (Decimal Inch) | 1.0000 |
| Projection Flange to Nose End (Inch) | 2 |
| Projection Flange to Nose End (Decimal Inch) | 2.0000 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 2.2500 |
| Overall Length (Decimal Inch) | 4.6900 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Lock Screw Thread Size | 1/2-20 |
