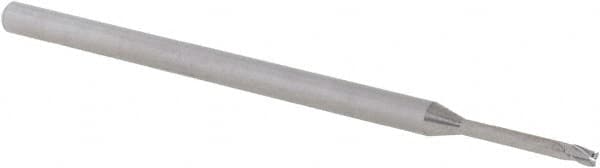

Corner Radius End Mill: 1/16″ Dia, 0.093″ LOC, 0.01″ Radius, 3 Flutes, Solid Carbide 2-1/2″ OAL, 1/8″ Shank Dia, 30 ° Helix, Bright/Uncoated, Corner Radius End, Centercutting, Series Miniature
Item #: 62781190
Brand: Accupro
Model #: 14796239
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0625 |
| Mill Diameter (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 30 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2-1/2 |
| Mill Diameter Tolerance | +0.000000 to -0.001000 in |
| Shank Diameter Tolerance | -0.0001/-0.0003 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | Miniature |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0930 |
