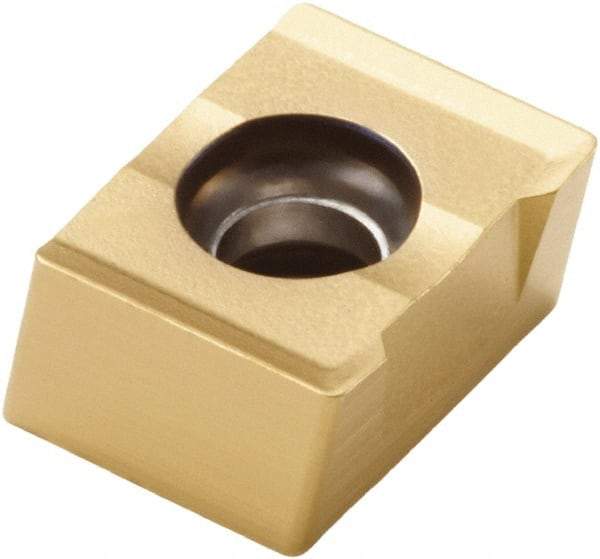

Seco - LNKT080508 M06 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.197" Thick, 0.031" Corner Radius
Item #: 62727797
Brand: Seco
Model #: 44680
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNKT |
| Insert Size | 080508 |
| Material | Carbide |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.3070 |
| Length (Decimal Inch) | 0.3940 |
| Thickness (Decimal Inch) | 0.1970 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | M06 |
| ISO Number | LNKT 080508PPTN-M06 |
