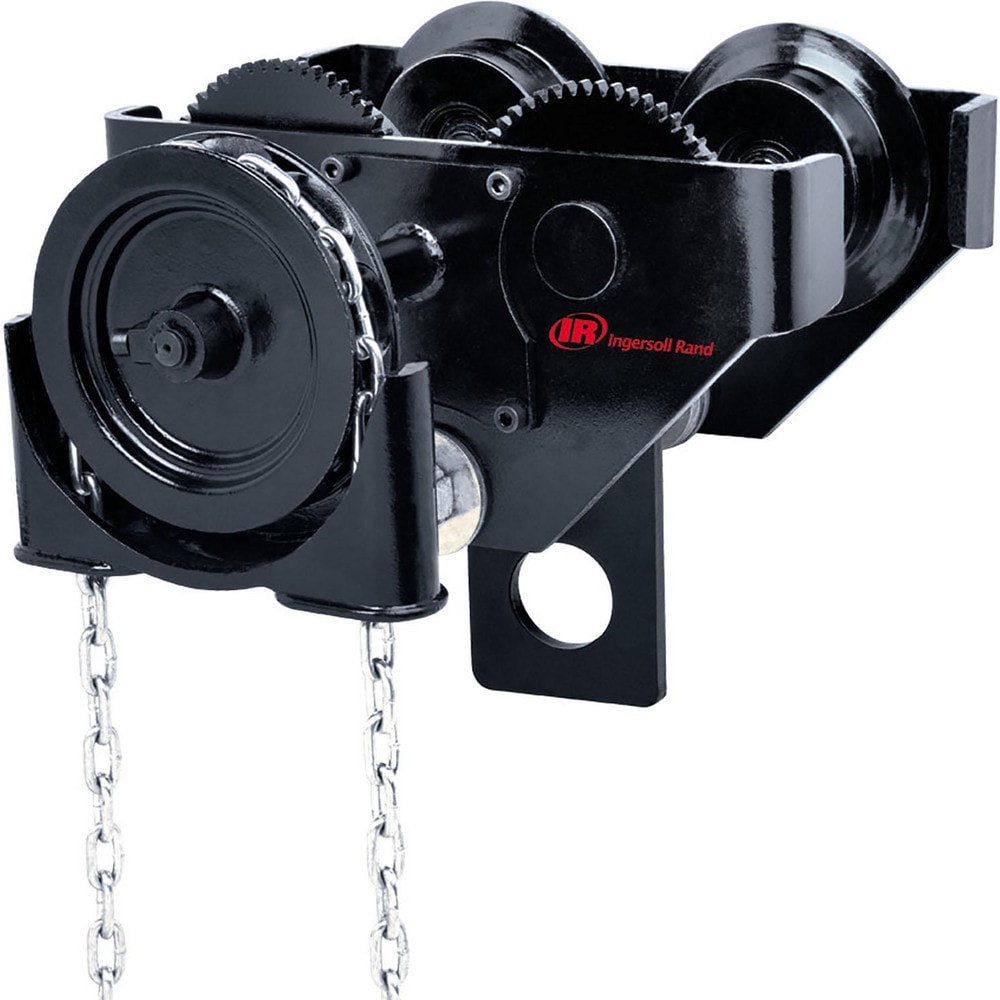

Trolleys; Type: Manual Geared Trolley; Maximum Flange Width: 8; Minimum Flange Width: 4.6; Minimum Radius (Inch): 60.0000
Item #: 75562595
Brand: Ingersoll Rand
Model #: GT050-8-15
Product Specifications
| Type | Manual Geared Trolley |
| Maximum Flange Width | 8 |
| Minimum Flange Width | 4.6 |
| Minimum Radius (Inch) | 60.0000 |
| Flange Width (Inch) | 4.6 to 8 |
| Body Material | Steel |
| Hoist Mount Type | Eye |
| Maximum I-beam Height | 8 |
| Beam Shape | Flat & Tapered |
| Color | Black |
| Wheel Diameter (Inch) | 4.5300 |
| Wheel Material | Cast Iron |
| Standards | ASME; CMAA; ANSI |
| Number Of Wheels | 4.000 |
| Finish | Painted |
| Additional Information | Universal Tread Fits Flat or Taperered Beams |
| Type of Tread | Universal Tread |
| Length (Decimal Inch - 4 Decimals) | 15.5000 |
| Load Capacity (Tons) | 5 |
| Load Capacity (Lb. - 3 Decimals) | 11000.000 |
| Width (Decimal Inch - 4 Decimals) | 15.6000 |
| UNSPSC Code | 24101706 |
| Country of Origin | China |
