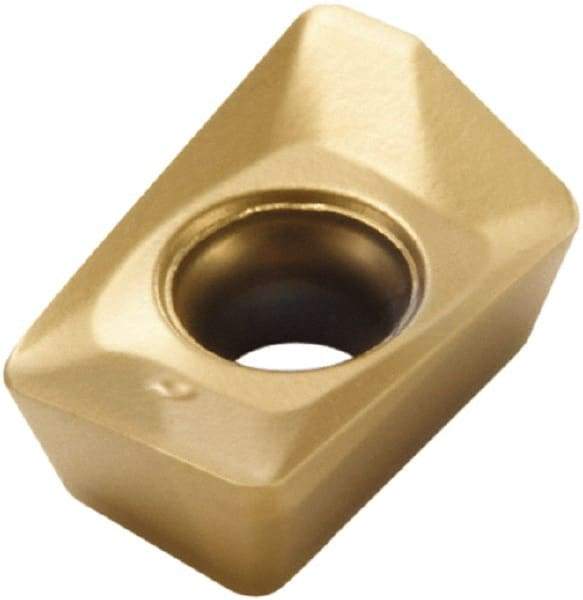

Seco - XOMX060216 M05 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 0.096" Thick, 1/16" Corner Radius
Item #: 62680350
Brand: Seco
Model #: 44609
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMX |
| Insert Size | 060216 |
| Material | Carbide |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.1610 |
| Length (Decimal Inch) | 0.2720 |
| Thickness (Decimal Inch) | 0.0960 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Relief Angle | 7.000 |
| Rake Angle | 21 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Parallelogram |
| Chipbreaker | M05 |
| ISO Number | XOMX060216R-M05 |
