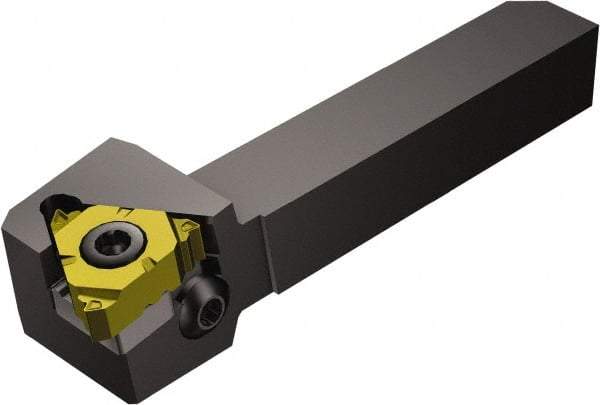

Sandvik Coromant - External Thread, Right Hand Cut, 12mm Shank Width x 12mm Shank Height Indexable Threading Toolholder - 70mm OAL, 266.RG-16.. Insert Compatibility, QS-266R/LFA Toolholder, Series CoroThread 266
Item #: 62640859
Brand: Sandvik Coromant
Model #: 5737601
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 70.00 |
| Insert Compatibility | 266.RG-16.. |
| Series | CoroThread 266 |
| Toolholder Style | QS-266R/LFA |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 21.30 |
| Head Length (Decimal Inch) | 0.8386 |
| Toolholder Material | Steel |
