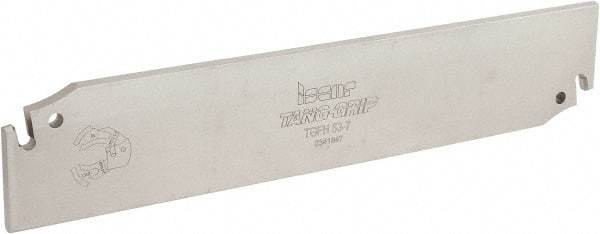

Iscar - 2.0709" Blade Height, 0.236" Blade Width, 10.236" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 62554829
Brand: Iscar
Model #: 2302227
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 6.00 |
| Blade Width (Decimal Inch) | 0.2360 |
| Blade Overall Length (mm) | 260.00 |
| Blade Overall Length (Decimal Inch) | 10.2360 |
| Blade Style | TGFH |
| Insert Style | TAG 7.. |
| Insert Width (mm) | 6.80 |
| Insert Width (Decimal Inch) | 0.2677 |
| Series | Tang-Grip |
| Insert Seat Size | 6 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 8.6600 |
| Cutting Height (mm) | 45.20 |
| Cutting Height (Decimal Inch) | 1.7795 |
| Minimum Insert Width (mm) | 6.80 |
| Minimum Insert Width (Decimal Inch) | 0.2677 |
| Maximum Insert Width (mm) | 7.50 |
| Maximum Insert Width (Decimal Inch) | 0.2953 |
| Complete Insert Compatibility | TAG N7JT; TAG N7W |
| Complete Tool Block/Toolholder Style Compatibility | SGTBK 38-9; SGTBK 40-9; SGTBK 50-9; SGTBU 40-9; SGTBU 50-9 |
| Manufacturers Catalog Number | TGFH 53-7 |
