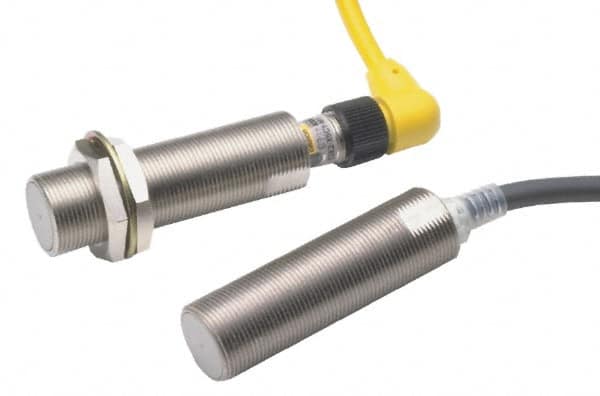

Omron - NC, NC, 2mm Detection, Cylinder Shielded, Inductive Proximity Sensor - 2 Wires, IP67, 12 to 24 VDC, M12x1 Thread, 69mm Long x 21mm Wide
Item #: 62331137
Brand: Omron
Model #: E2E2-X2Y2-US
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder Shielded |
| Sensor Operation Output Mode | NC |
| Output Type | NC |
| Connector Type | Prewired |
| Number of Wires | 2 |
| Detection Distance (mm) | 2.00 |
| Sensor Head Size | M12 |
| Maximum Voltage | 12-24 VDC |
| Overall Width/Diameter (mm) | 21 |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 200 |
| Response Frequency (Hz) | 25 |
| Thread Size | M12x1 |
| Housing Material | Brass |
| Resistance Features | Insulation Resistant; Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 69 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -40 |
| Standards Met | CE Listed; IEC |
