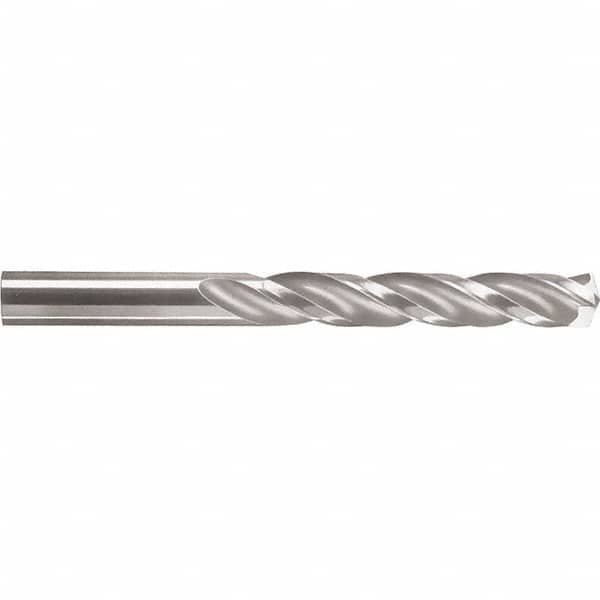

Screw Machine Length Drill Bit: 0.4134″ Dia, 150 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 103
Item #: 62191515
Brand: SGS
Model #: 63029
Product Specifications
| Drill Bit Size (mm) | 10.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 150 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.4134 |
| Drill Bit Size (Decimal Inch) | 0.4134 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.50 |
| Series | 103 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.2205 |
| Maximum Drilling Depth (mm) | 31.00 |
| Shank Length (Decimal Inch) | 1.8110 |
| Shank Length (mm) | 46.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in; +0.0000 to -0.0127 mm |
| Flute Length (Decimal Inch) | 1.6929 |
| Flute Length (mm) | 43.00 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
| Material Grade | Micrograin |
