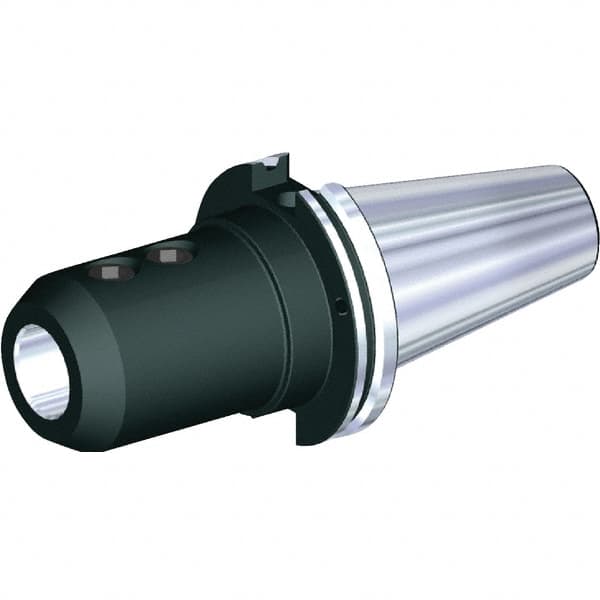

Kennametal - CVKV50 Taper Shank 1-1/2" Hole End Mill Holder/Adapter - 2-3/4" Nose Diam, 4-1/2" Projection, 1-8 Drawbar, Through-Spindle & DIN Flange Coolant
Item #: 62102694
Brand: Kennametal
Model #: 3860193
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CVKV50 |
| Hole Diameter (Inch) | 1-1/2 |
| Nose Diameter (Inch) | 2-3/4 |
| Projection (Decimal Inch) | 4.5000 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 2.8200 |
| Overall Length (Decimal Inch) | 8.5000 |
| Overall Length (mm) | 215.90 |
| Coolant Type | Through-Spindle & DIN Flange |
| Drawbar Thread Size | 1-8 |
