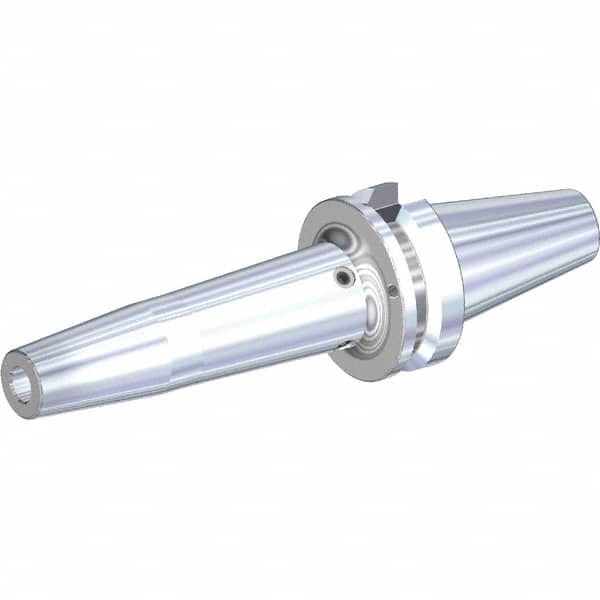

Kennametal - 3/4" Hole Diam, BT50 Taper Shank Shrink Fit Tool Holder & Adapter - 199.9mm Projection, 33.02mm Nose Diam, 1.61" Clamping Depth, 15,000 RPM, Through Coolant
Item #: 62100557
Brand: Kennametal
Model #: 3615387
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 19.05 |
| Hole Diameter (Inch) | 3/4 |
| Projection (mm) | 199.90 |
| Projection (Decimal Inch) | 7.8700 |
| Nose Diameter (mm) | 33.02 |
| Nose Diameter (Decimal Inch) | 1.3000 |
| Through Coolant | Through Coolant |
| Clamping Depth (Decimal Inch) | 1.6100 |
| Overall Length (mm) | 301.80 |
| Overall Length (Decimal Inch) | 11.8820 |
| Balanced to (RPM) | 15000 |
