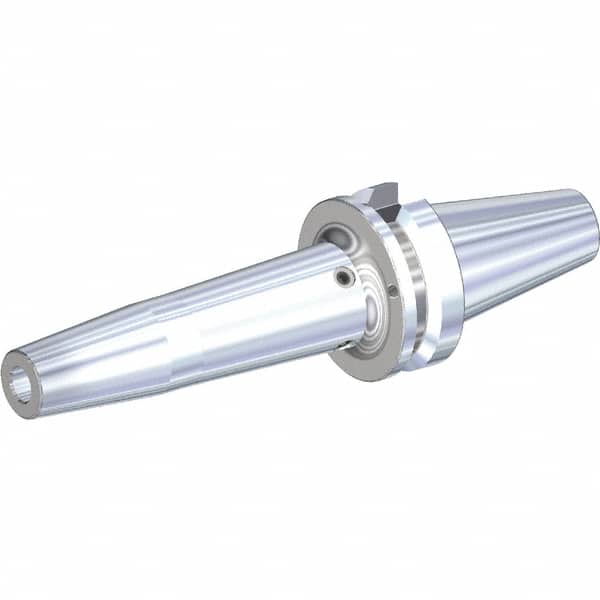

Kennametal - 12mm Hole Diam, BT40 Taper Shank Shrink Fit Tool Holder & Adapter - 160mm Projection, 24mm Nose Diam, 36mm Clamping Depth, 15,000 RPM, Through Coolant
Item #: 62100458
Brand: Kennametal
Model #: 3615367
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Projection (mm) | 160.00 |
| Projection (Decimal Inch) | 6.2992 |
| Nose Diameter (mm) | 24.00 |
| Nose Diameter (Decimal Inch) | 0.9449 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 36.00 |
| Overall Length (mm) | 225.40 |
| Overall Length (Decimal Inch) | 8.8740 |
| Balanced to (RPM) | 15000 |
