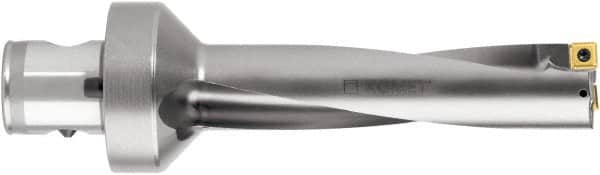

Komet - 205mm Max Drill Depth, 5xD, 41mm Diam, Indexable Insert Drill - 2 Inserts, ABS 63 Modular Connection Shank
Item #: 61918942
Brand: Komet
Model #: U4564100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U45 |
| Drill Diameter (mm) | 41.00 |
| Drill Diameter (Decimal Inch) | 1.6142 |
| Maximum Drill Depth (mm) | 205.00 |
| Maximum Drill Depth (Decimal Inch) | 8.0709 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 63 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.6339 |
| Maximum Drill Diameter (mm) | 41.50 |
| Overall Length/Projection (mm) | 249.00 |
| Overall Length/Projection (Decimal Inch) | 9.8031 |
| Insert Compatibility | SOGX 120408 |
| Body Length (Decimal Inch) | 9.8031 |
| Body Length (mm) | 249.00 |
| Series | KUB Pentron |
