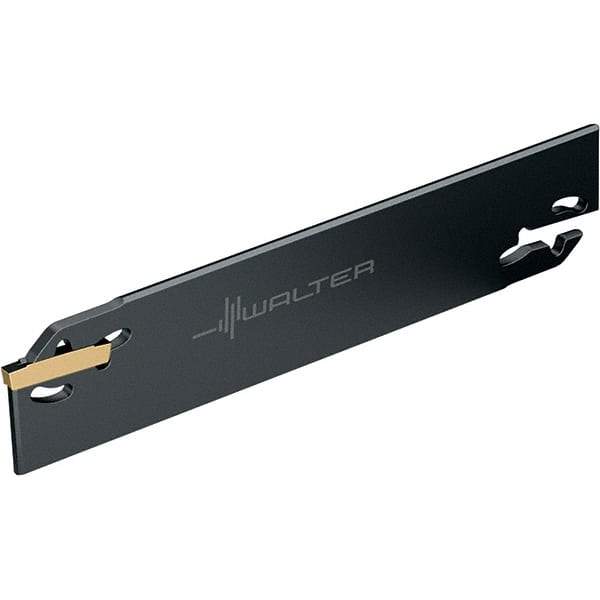

Walter - 1.0236" Blade Height, 4.2638" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 40mm Max Depth of Cut, G1042 Blade
Item #: 61912903
Brand: Walter
Model #: 5913350
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Overall Length (mm) | 108.30 |
| Blade Overall Length (Decimal Inch) | 4.2638 |
| Blade Style | G1042 |
| Insert Style | GX24-2E3/F3.. |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Tool Block/Toolholder Style | SBN |
| Insert Holding Method | Self Grip |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Cutting Height (mm) | 21.00 |
| Cutting Height (Decimal Inch) | 0.8268 |
| Insert Corner Radius (Decimal Inch) | 0.0626 |
| Complete Insert Compatibility | GX24-2E300N020-CE4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N02-CF6; GX24-2E300N030-GD3; GX24-2E300N030-UA4; GX24-2E300N030-UF4; GX24-2E300N03-GD3; GX24-2E300N03-GD6; GX24-2E300N03-UD6; GX24-2E300N03-UF4; GX24-2E300N150-RD4; GX24-2E300N15-RD4 |
| Complete Tool Block/Toolholder Style Compatibility | SBN12-26K-E; SBN12-26KS-E; SBN16-32-K-E; SBN16-32KS-E; SBN2020-26-K; SBN20-32K-E; SBN20-32KS-E; SBN20-46K-E; SBN2520-32-K; SBN3229-32-K; SBN3229-46-K; SBN4037-46-K |
