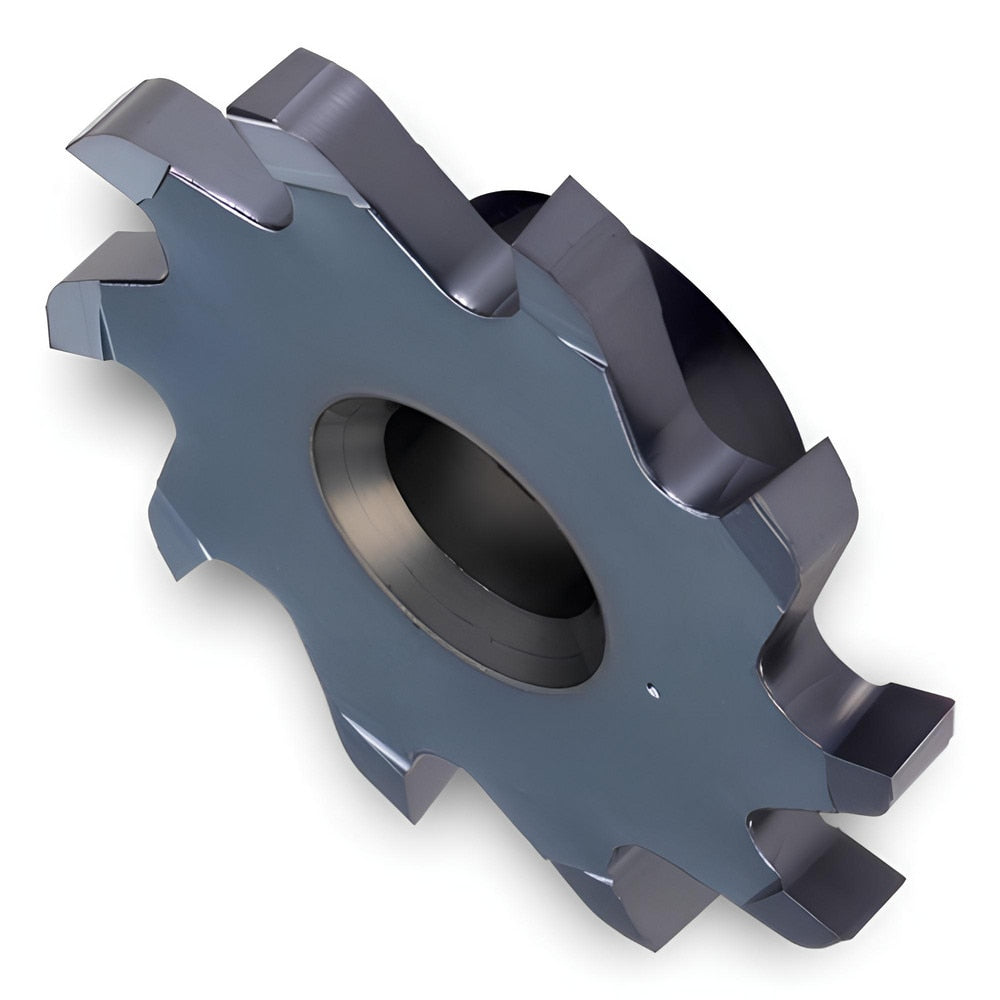

Brand: Ingersoll Cutting Tools / Part #: 6343171
Item #: 14745046
Brand: Ingersoll Cutting Tools
Model #: 6343171
Product Specifications
| Milling Tip Type | T-Slot |
| Milling Tip Style | 19T |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Cutting Diameter (Decimal Inch) | 1.5618 |
| Tool Material | Carbide |
| Manufacturer Grade | IN2005 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | 19T |
| Coating Process | PVD |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Cutting Width (Decimal Inch) | 0.1559 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Manufacturers Catalog Number | 19T-1515LRRN01 |
| Overall Length (Decimal Inch) | 0.3940 |
| Coolant Through | No |
| Included Angle Degree | 90 |
| Depth Of Cut | 0.4300 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3940 |
| Number Of Flutes | 10 |
