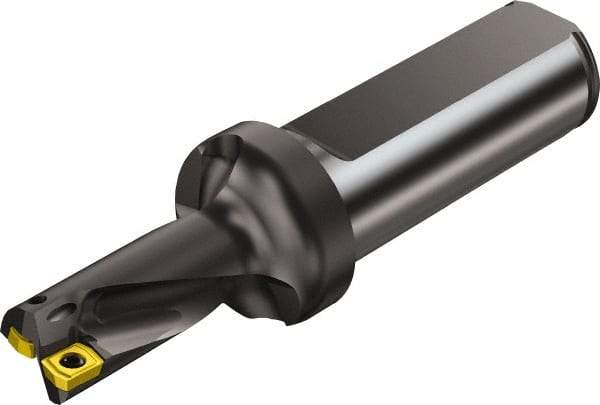

Sandvik Coromant - 4.725" Max Drill Depth, 2xD, 2-1/4" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 61898052
Brand: Sandvik Coromant
Model #: 5723405
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-02 |
| Drill Diameter (mm) | 57.15 |
| Drill Diameter (Inch) | 2-1/4 |
| Drill Diameter (Decimal Inch) | 2.2500 |
| Maximum Drill Depth (Decimal Inch) | 4.7250 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 5.5 |
| Insert Size (Decimal Inch) | 0.2165 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.3719 |
| Maximum Drill Diameter (mm) | 57.15 |
| Overall Length/Projection (mm) | 228.93 |
| Overall Length/Projection (Decimal Inch) | 9.0129 |
| Insert Compatibility (Outside or Peripheral) | 09P |
| Flute Length (mm) | 153.91 |
| Flute Length (Decimal Inch) | 6.0593 |
| Body Length (Decimal Inch) | 4.7250 |
| Body Length (mm) | 120.02 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Radius (Decimal Inch) | 1.1250 |
| Series | CoroDrill 880 |
