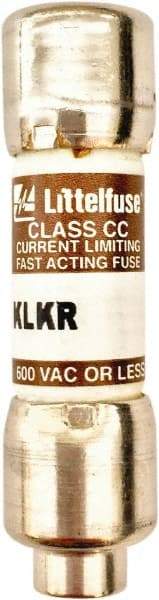

Littelfuse - 300 VDC, 600 VAC, 6 Amp, Fast-Acting General Purpose Fuse - Fuse Holder Mount, 38.1mm OAL, 20 at DC, 200 at AC kA Rating, 10.3mm Diam
Item #: 61848917
Brand: Littelfuse
Model #: KLKR006.T
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | CC |
| Amperage | 6 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 38.10 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Diameter (mm) | 10.30 |
| Overall Diameter (Decimal Inch) | 0.4100 |
| Material | Melamine |
| Mounting Type | Fuse Holder |
| Rejection Setting | Rejecting |
| Interrupting Rating (A) | 200000 @ AC |
| Interrupting Rating (kA) | 20 @ DC; 200 @ AC |
| Standards Met | CE Certified; CSA File LR29862 Certified; RoHS Compliant; UL 248-4; UL Listed File E81895 |
